RFID-based Beef Cattle Management Solution

August 15,2024.

Solution Summary

RFID- based Livestock Management Solution

Cattle Health Management System is an innovative software solution that helps to effectively manage the health and welfare of cattle. It incorporates a range of features and tools designed to provide cattle farmers and veterinarians with an easy-to-use and comprehensive platform for monitoring and tracking the health and wellbeing of their herds.

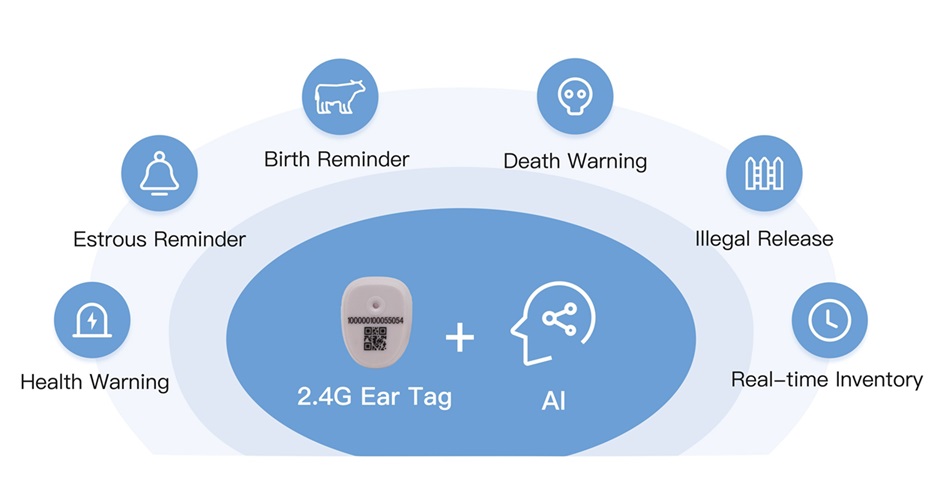

Overview & Benifits

Our company's biochip ear tag is the world's first 2.4G active electronic ear tag. This ear tag integrates 2.4G RFID technology, a temperature sensor, and an acceleration sensor. It can collect real-time vital characteristic information of cattle, and through our cloud livestock system, monitor the health, estrus, calving, and other conditions of cattle.

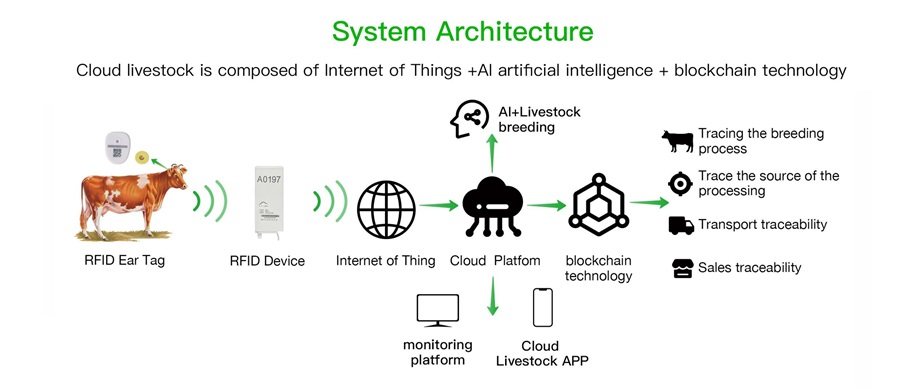

System Architecture

Architecture

Main Functions

APP

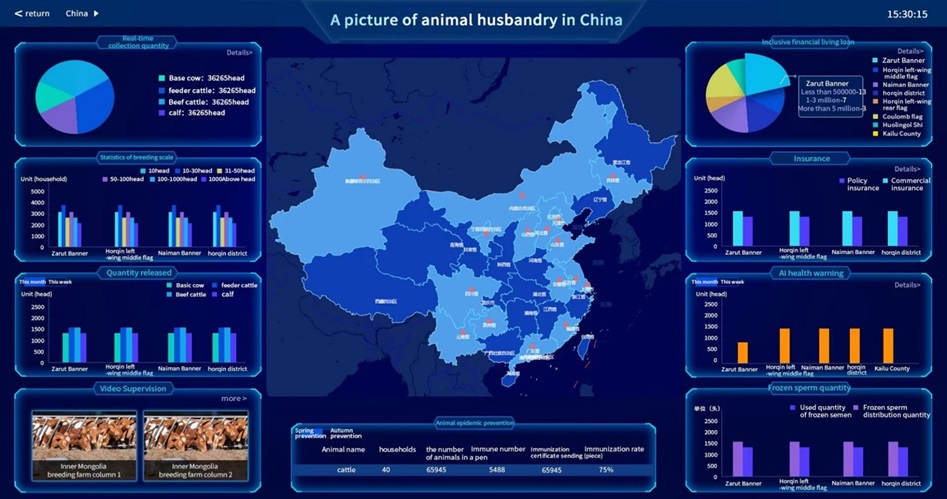

System

Main Devices

2.4G IOT Smart Terminal

Model	ZR7901P
Working frequency	2440MHz
Lateral tension (wind-proof)	20N (Typhoon level 12)
Lightning protection level	≧ 4000V
Antenna gain	12dBi Dual polarization directional antenna
MAX receive sensitivity	-90dbm
Reading range	MAX 400m (based on tag type)
IP	IP65
Material	ABS, high temperature resistant, white color
Dimension	106106mm
Input voltage	9-12V
Net weight	2kg
Power consumption	300mA
Power adaptor	12V 2A
Operating temperature	-20℃~+60℃
Storage temperature	-45℃~85℃
Protocol	MarktraceRFID protocol
Transfer method	4Gand TCP/IP
Temperature measurement accuracy	0.3℃

2.4G Ear Tag

Model No	ZR3258
Operation frequency	2482MHz
Inductive Mode	Initiative Transmit,Transmit Every 10s
Output power	7dbm
Material	ABS, Heat Resistant ,
Dimension	46.5369mm
Life time	Battery Life Up to 3years
IP Grade	IP67
Color	Flesh Color
Weight	14.9g （Female 3g）
Unique ID	15 digital ID in DEC, Lester Marking
Operating temperature	-20℃~+45℃
Operating humidity	20%～95%
Storage humidity	10%～98%
Temperature measurement range	-20℃~+60℃
Temperature measurement accuracy	±0.3℃ (32℃~45℃)±0.5℃ (others)
Temperature measurement method	Contact
Movement direction	X, Y, Z
Range	±2g
Accuracy	±8mg
Sampling frequency	10Hz
