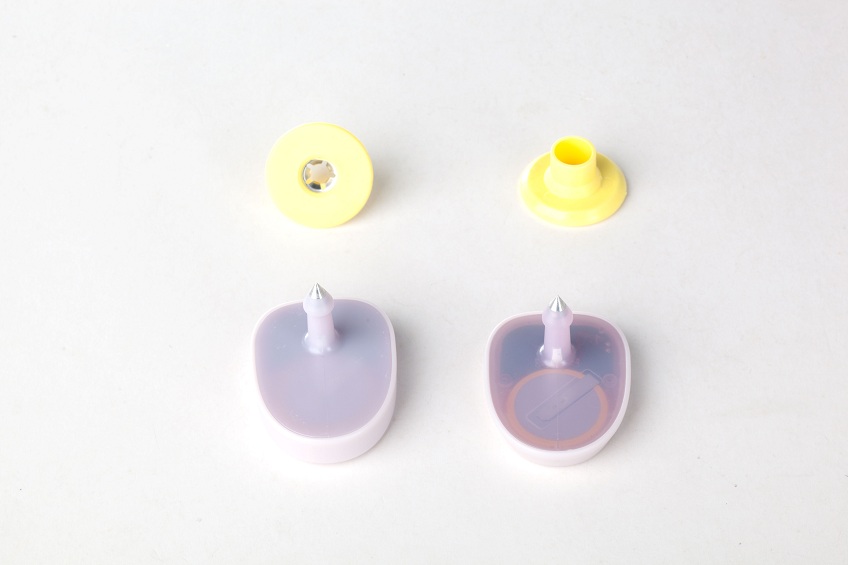

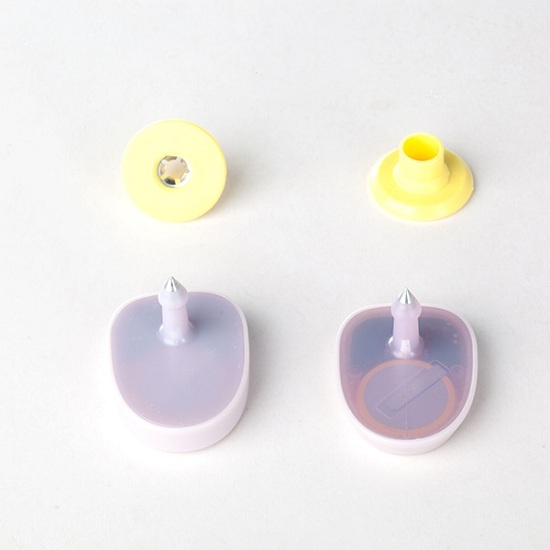

2.4G RFID Electronic Ear Tag For Animals
Key Features:
1. Based on its own advantages, Zhongrong Deigital has developed and designed a unique 2.4G active animal ear tag on the market, which solves the problem of short communication distance and low recognition rate of passive ear tags on the market. 2.4G animal ear tags play an important role in large ranches.
2. 2.4G RFID Electronic Ear Tag adopts anti-collision algorithm, with a recognition rate of up to 99%. With 2.4G ultra-long distance integrated reader, the working communication distance can reach 400 meters.

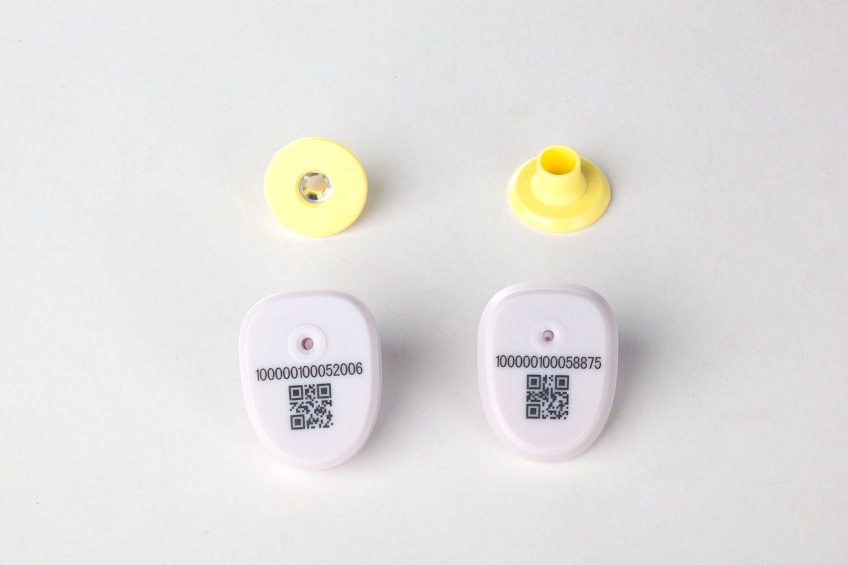

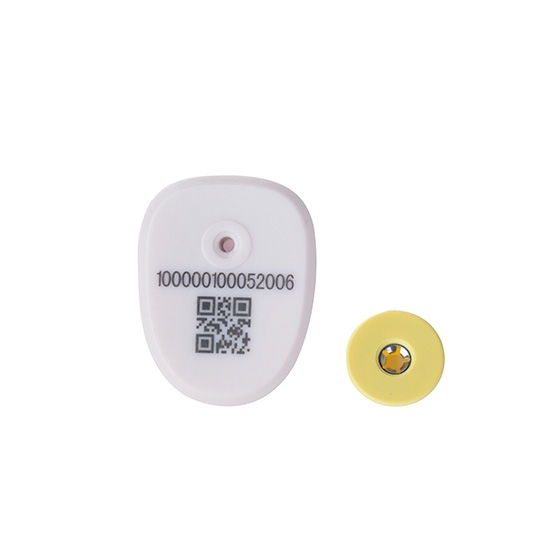

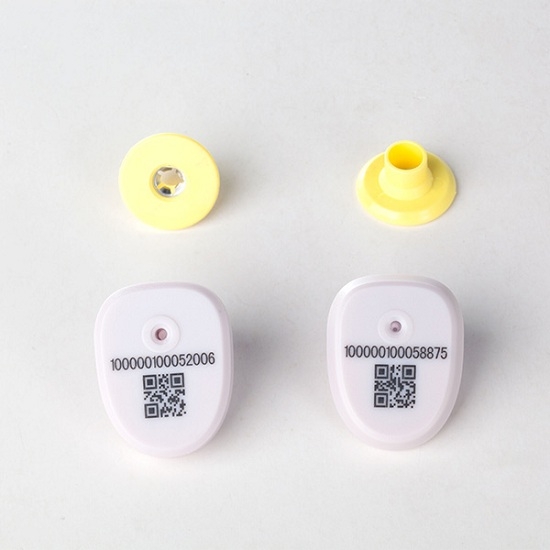

3. The ID number cannot be changed, and laser engraving is also accepted to customize the customer's own number. When leaving the factory, there is an ID and a QR code.
4. The advantages of 2.4G Internet of Things communication technology provide services for subsequent ear temperature recognition, motion recognition and other functions.
5. The drop rate is 3%, the weight is 17.45g, which meets the relevant regulations of the Ministry of Agriculture of various countries on animal ear tags.
6. We pursue the use of simpler host computer communication data to facilitate customers to carry out secondary development and system docking.
Parameters:
Model No |
ZR3458 |
Operation frequency |
2482MHz |
Type |
Beacon Type |
Signal modulation |
GFSK |
Communication speed |
1Mbit/s |
Inductive Mode |
Initiative Transmit, Transmit Every 10s |
Output power |
7dbm |
Material |
ABS, Heat Resistant , |
Dimension |
46.5*36*11mm |
Life time |
Battery Life Up to 5 years |
Battery model |
CR2477 |
IP Grade |
IP67 |
Installation |
Ear Piercing |
Color |
Flesh Color |
Weight |
17.45g (Female 3g) |
Unique ID |
15 digital ID in DEC, Lester Marking |
Quiescent Current |
<10uA |
Peak Current |
20mA |
Operating temperature |
-20℃~+60℃ |
Storage temperature |
-20℃~+45℃ |
Operating humidity |
20%~95% |
Storage humidity |
10%~98% |
Temperature measurement range |
-20℃~+60℃ |
Temperature measurement accuracy |
±0.3℃ (32℃~45℃) ±0.5℃ (others) |
Temperature measurement method |
Contact |
Movement direction |
X, Y, Z |
Range |
±2g |
Accuracy |
±8mg |
Sampling frequency |
10Hz |
