Product Details

2.4G Current Monitoring RFID Tag for Electrical Equipments

Key Features:

Current Monitoring RFID Tag adopt RFID technology and current measurement technology. Not only for electrical equipment inventory checking, but also for working status real-time control and capacity utilization control, offer a comprehensive solution for efficient management, tracking, and monitoring of electrical equipment.

1. MR3873X has two male and female power input/output plug, easy to fixed on equipment. In real-time to control equipment current.
2. Measure up to GB2099.1-2008 and GB1002-2008 standard. More safe and reliable.
3. Power supply by AC，standby battery inside, working above 5 years.
4. High-precision current measurement with an error of less than 0.1%. It is equipped with a 2.4G RFID reader and writer with a reading range of more than 100 meters. It also has an anti-disassembly alarm function to avoid malicious disassembly.
5. Real-time Tracking: The 2.4G frequency technology ensures quick and reliable communication between the RFID tags and compatible monitoring systems.
6. Typical applications are: Production line equipment like Mounter; Laboratory equipment like OLT/ Optical Module, Network Analyzer; Server room like Server, PC; Medical Instruments etc.

Parameters:

Items	Parameters
Electrical Features
AC Input Current	0A~16A
AC Input Volt	110V ~ 130V/60Hz
AC Input Volt	220V ~ 230V/50Hz
Measuring Accuracy	0A~2A，deviation ±5mA
	2A~10A，deviation±10mA
	10A~16A，deviation±50mA
Sampling frequency	8KHz
Equivalent input noise	19.9nV/√Hz
RMS measurement bandwidth	4KHz
Average current (during AC measurement)	7mA typical, 10mA maximum
Average current (when AC is not measured)	20uA typical, 21uA maximum
Air Discharge	8000V
Power Supply Mode	Combination of battery power supply and AC power supply
Battery	1200mAh 3.6V
Life Time	5 years
RF Features
Working Frequency	2.4GHz
MAX Output Power	0dBm
Modulation Mode	GFSK
Data Rate	1Mbps
Material	ABS, High temperature resistance, White Color
Dimension	Body：61x41x26mm Cable:200mm Female 400mm Male
Ingress Protection	54
Environment Features
Working Temperature	-20℃ to +60℃
Store Temperature	-40℃ to +80℃

Model Detail

Model

MR3873A

MR3873B

MR3873C

MR3873D

Input AC

current

0-10A

0-6A

0-16A

Connector

C16 to C15

C6 to C5

C8 to C7

C22 to C21


Dimension

Photos:

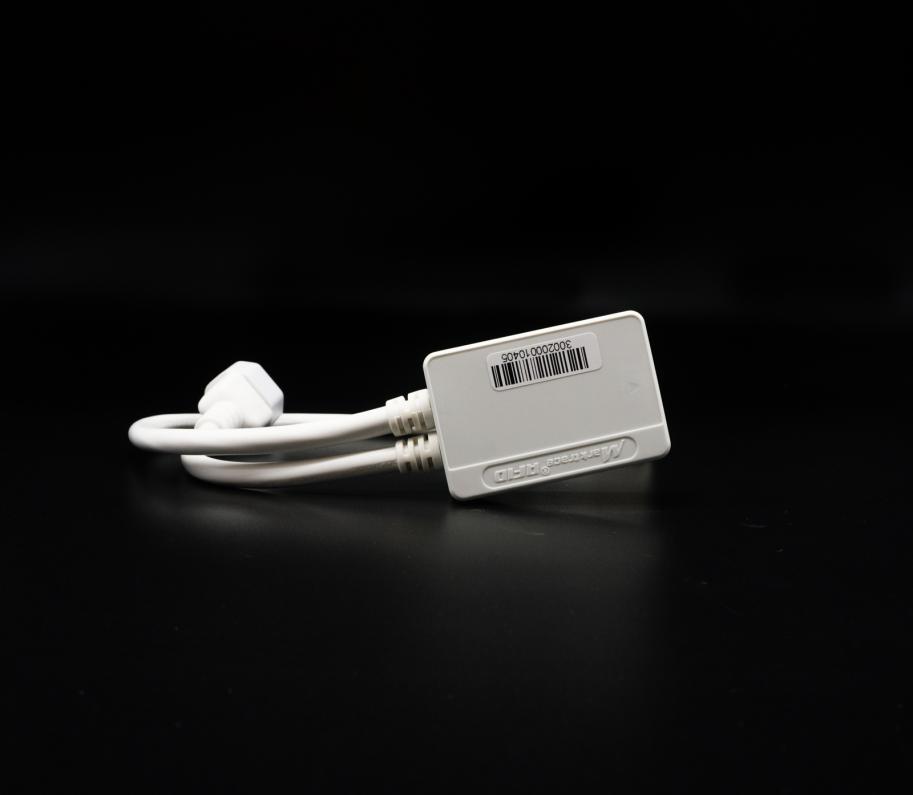

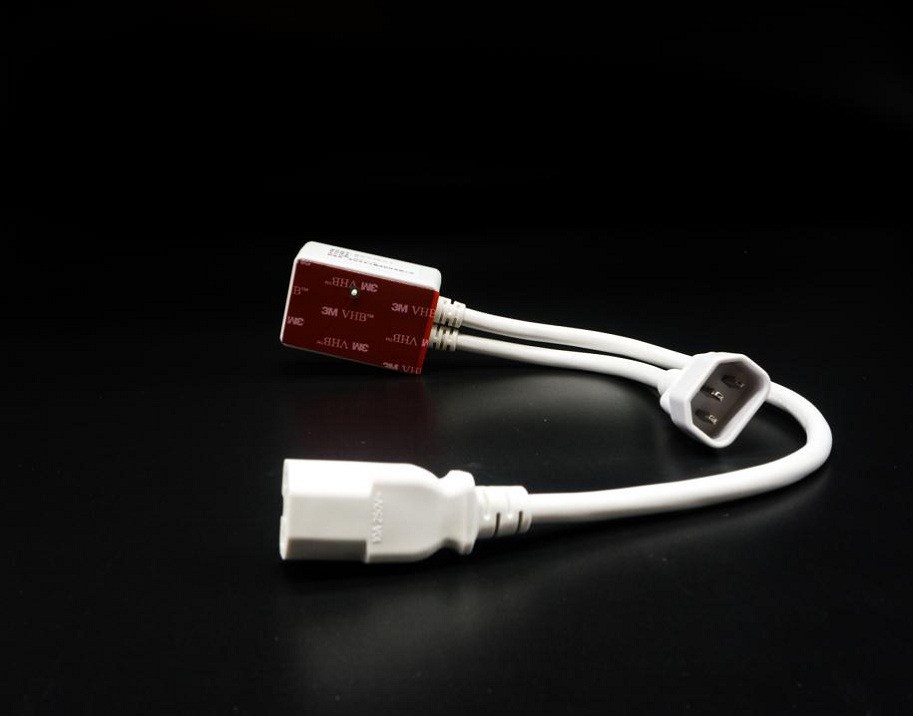

Current Monitoring RFID Tag

Electrical Asset RFID Tag
